| Quantity: | |
|---|---|

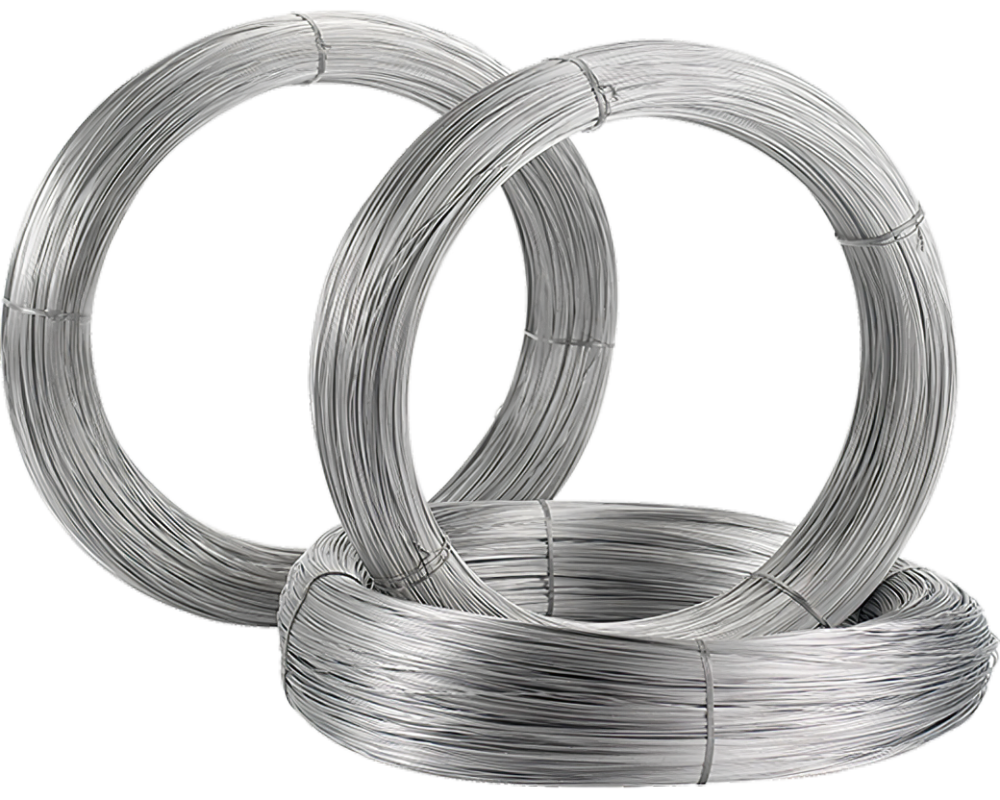

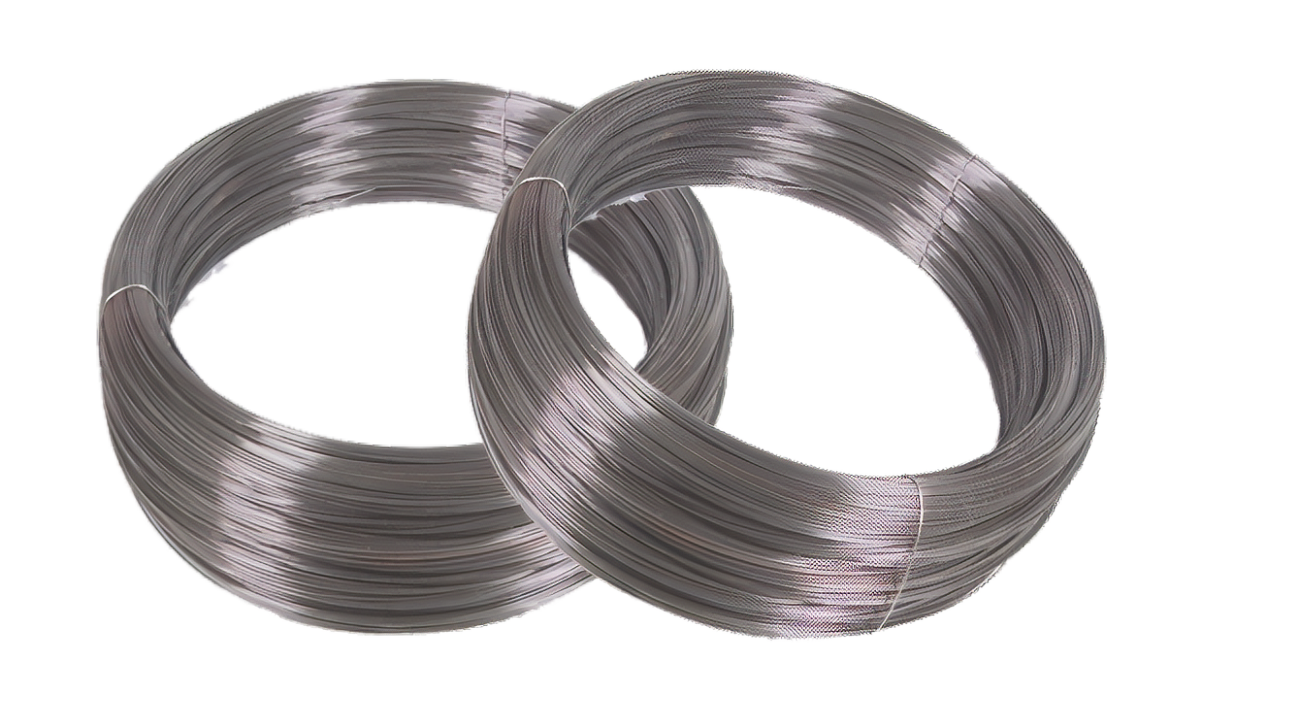

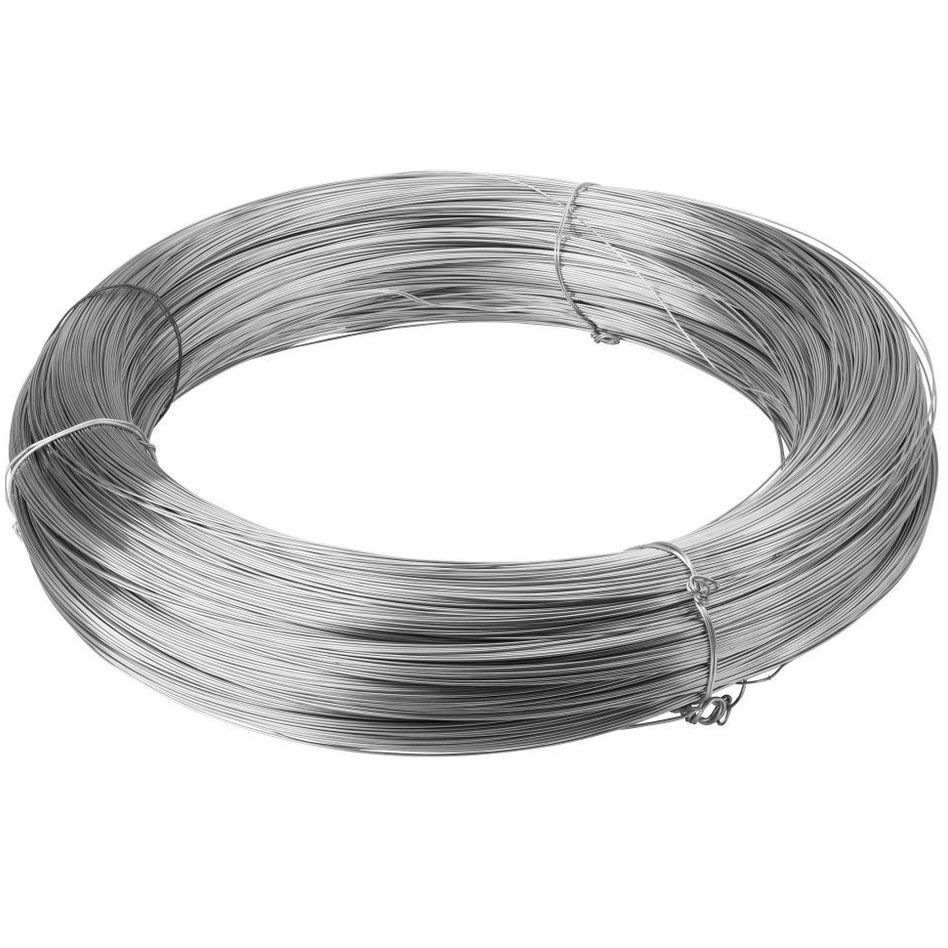

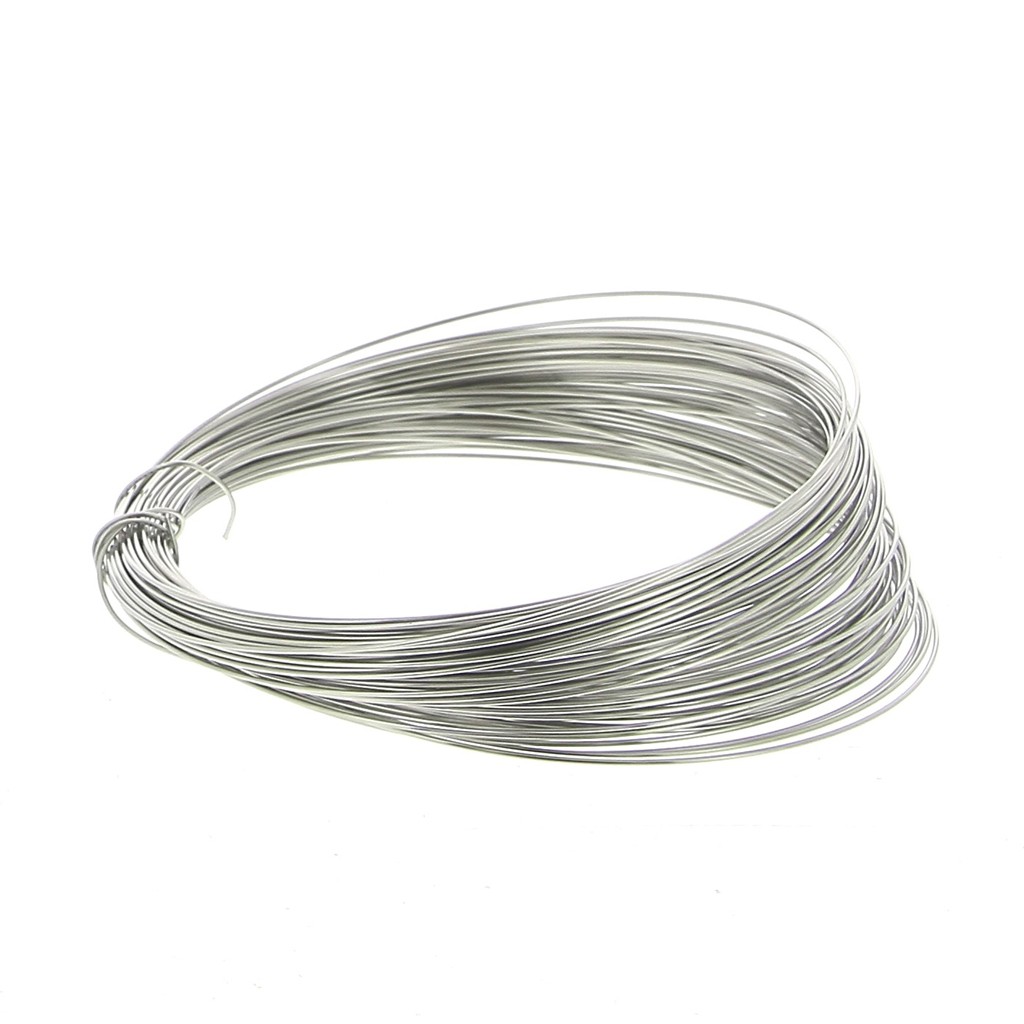

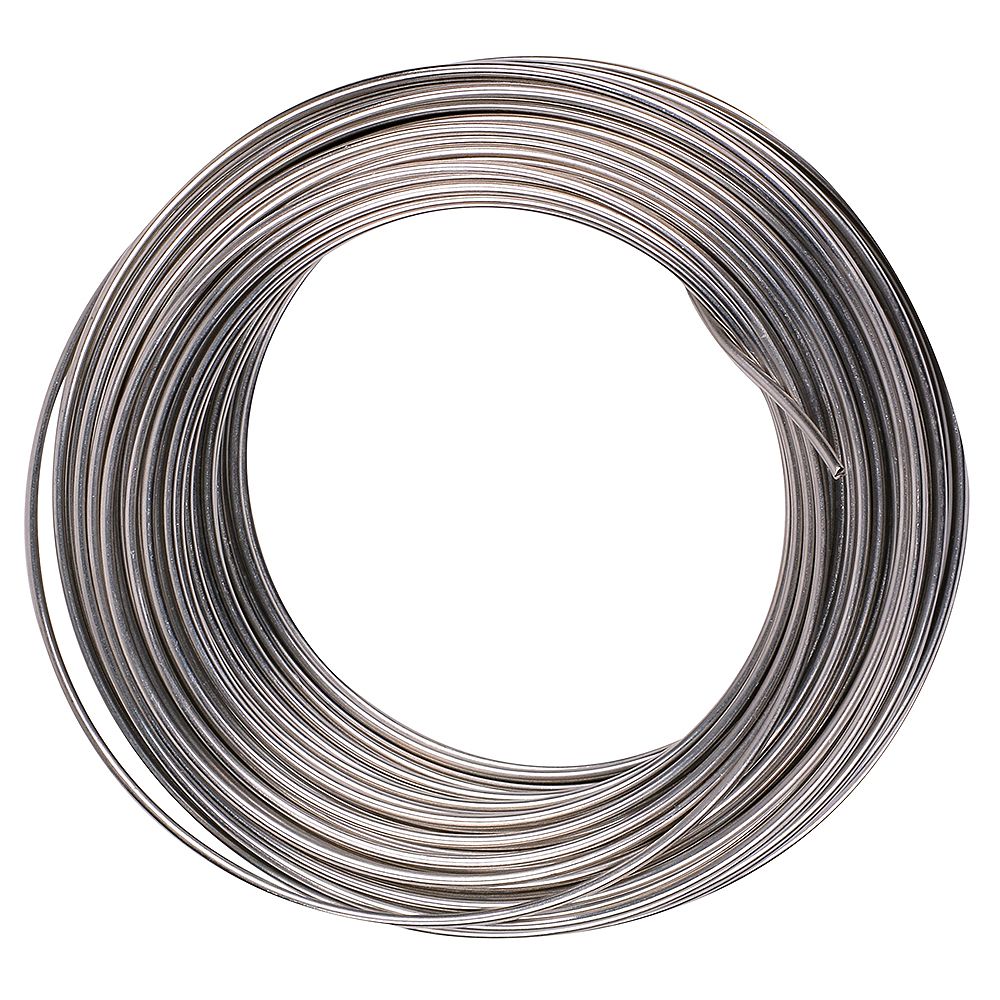

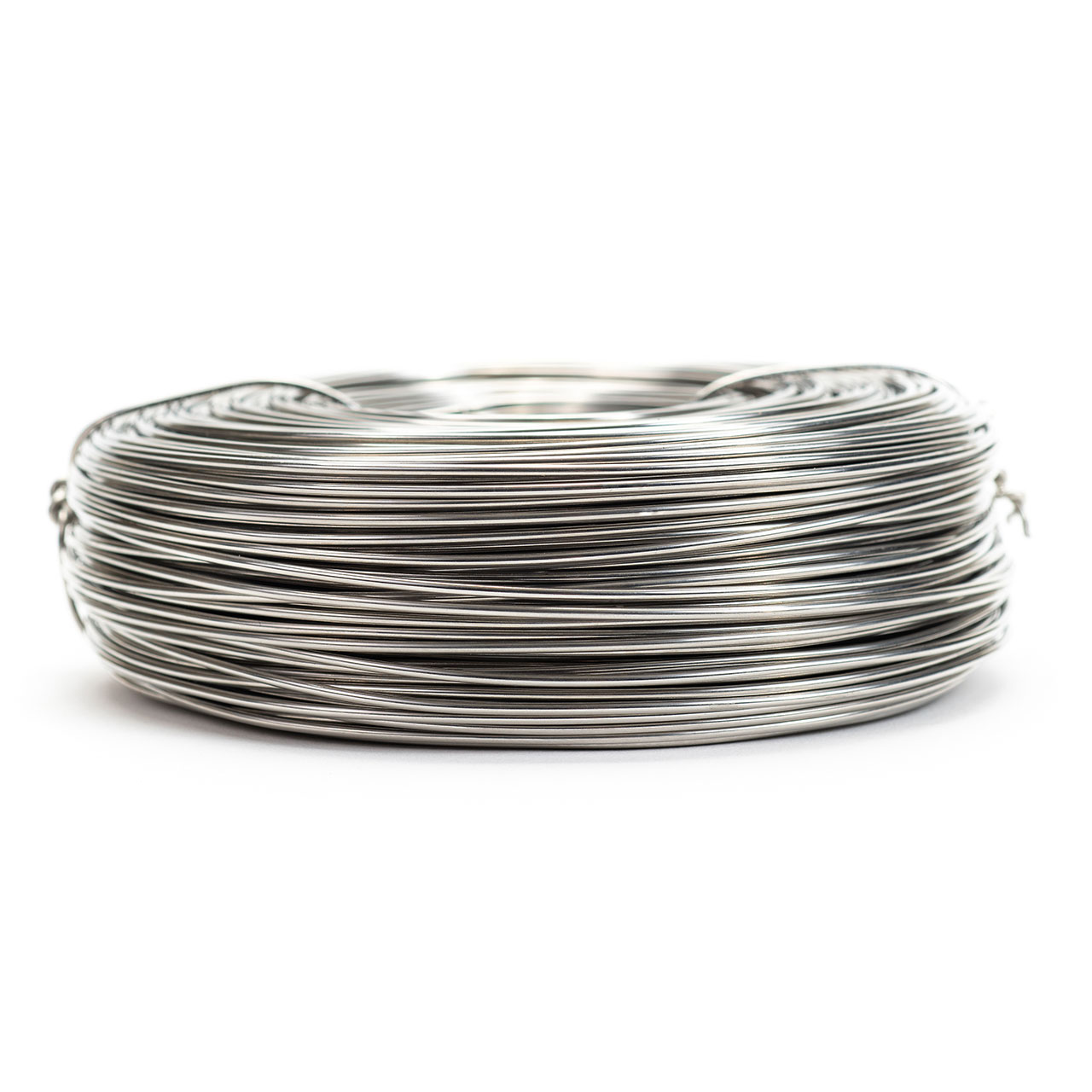

Product Name | Stainless steel wire |
Type | 200 series: 201,202 |
300 series: 301,302,304,304L,308,309S,310s,316,316L,321,347 | |
400 series: 410,420,430,434 | |
Wire diameter | 0.02-5mm |
Standard | ASTM AISI GB JIS SUS DIN |
Length | As customers’ requirement |
Packing | Spool or roll |
MOQ | 50kg |
Delivery | 20 days after received the deposit |
Usage | Lifting,fixing,cableway,hanging,supporting,refloatation,haulage. |
Product Name | Stainless steel wire |
Type | 200 series: 201,202 |
300 series: 301,302,304,304L,308,309S,310s,316,316L,321,347 | |
400 series: 410,420,430,434 |
Main Application:
Stainless steel wire is widely use for lifting, fixing, cableway, hanging, supporting, refloatation, haulage,making kitchen utensils, steel balls, etc.
Note:
1. Free sampling, 100% after-sales quality assurance, Support any payment method;
2. All other specifications of stainless steel wire are available according to your requirement (OEM&ODM)! Factory price you will get from baosteelholdings GROUP.
Specification | Grade | Symbol | |
AISI/SAE | DIN | ||
Auestenite | 302HQ | 1.4567 | WSA |
304 | 1.4301 | WSB | |
304HC/304J3 | - | ||
305 | 1.4303 | ||
316 | 1.4401 | ||
Martensite | 430 | 1.4016 | WSB |
434 | 1.4113 | ||
Ferrite | 410 | 1.4006 | |
1. Wire diameter possible range: 5mm ~ 40mm
2. Packaging form: 100kg ~ 1,000kg / Single weight can be changed according to customer’s order.
Wire diameter (mm) | Allowable tolerance (mm) | Maximum deviation of diameter (mm) |
0.020-0.049 | +0.002 -0.001 | 0.001 |
0.050-0.074 | ±0.002 | 0.002 |
0.075-0.089 | ±0.002 | 0.002 |
0.090-0.109 | +0.003 -0.002 | 0.002 |
0.110-0.169 | ±0.003 | 0.003 |
0.170-0.184 | ±0.004 | 0.004 |
0.185-0.199 | ±0.004 | 0.004 |
0.-0.299 | ±0.005 | 0.005 |
0.300-0.310 | ±0.006 | 0.006 |
0.320-0.499 | ±0.006 | 0.006 |
0.500-0.599 | ±0.006 | 0.006 |
0.600-0.799 | ±0.008 | 0.008 |
0.800-0.999 | ±0.008 | 0.008 |
1.00-1.20 | ±0.009 | 0.009 |
1.20-1.40 | ±0.009 | 0.009 |
1.40-1.60 | ±0.010 | 0.010 |
1.60-1.80 | ±0.010 | 0.010 |
1.80-2.00 | ±0.010 | 0.010 |
2.00-2.50 | ±0.012 | 0.012 |
2.50-3.00 | ±0.015 | 0.015 |
3.00-4.00 | ±0.020 | 0.020 |
4.00-5.00 | ±0.020 | 0.020 |
Mechanical Properties
Symbol | Diameter (mm) | Grade | Tensile strength (kgf/mm2) | Elongation(%) | Reduction of Area rate(%) |
WSA | 0.8 ~ 2.0 | STS XM-7 | 49~64 | ≥30 | ≥70 |
2.0 ~ 5.5 | STS XM-7 | 45~60 | ≥40 | ≥70 | |
STS 304HC, 304L | 52~67 | ≥40 | ≥70 | ||
WSB | 0.8 ~ 2.0 | STS XM-7 | 51~69 | ≥20 | ≥65 |
STS 430 | 51~71 | ≥65 | |||
2.0 ~ 17.0 | STS XM-7 | 46~64 | ≥25 | ≥65 | |
STS 304HC, 304L | 54~72 | ≥25 | ≥65 | ||
STS 430 | 46~61 | ≥10 | ≥65 |
Chemical Composition
material | C | Si | Mn | P | S | Cr | Ni | Mo |
STS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00 ~ 10.50 | 18.00 ~ 20.00 | - |
STS304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00 ~ 13.00 | 18.00 ~ 20.00 | - |
STS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00 ~ 14.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 |
STS316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00 ~ 15.00 | 16.00 ~ 18.00 | 2.00 ~ 3.00 |
STS410 | ≤0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.50 ~ 13.50 | - | - |
STS420J1 | 0.16 ~ 0.25 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.00 ~ 14.00 | - | - |
STS420J2 | 0.26 ~ 0.40 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.00 ~ 14.00 | - | - |
STS430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.030 | 16.00 ~ 18.00 | - | - |

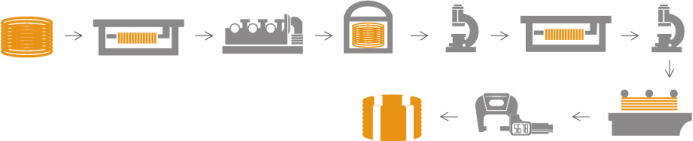

Process of production
The production process of martensitic stainless steel is as follows: hot rolling roil - annealing - alkali immersion - rinsing - pickling - coating - wire drawing - decoating - finished product inspection - packaging
Austenitic stainless steel wire production process: hot rolling coil - solution treatment - alkali immersion - rinsing - pickling - coating - wire drawing - decoating - neutralization - finished product inspection - packaging

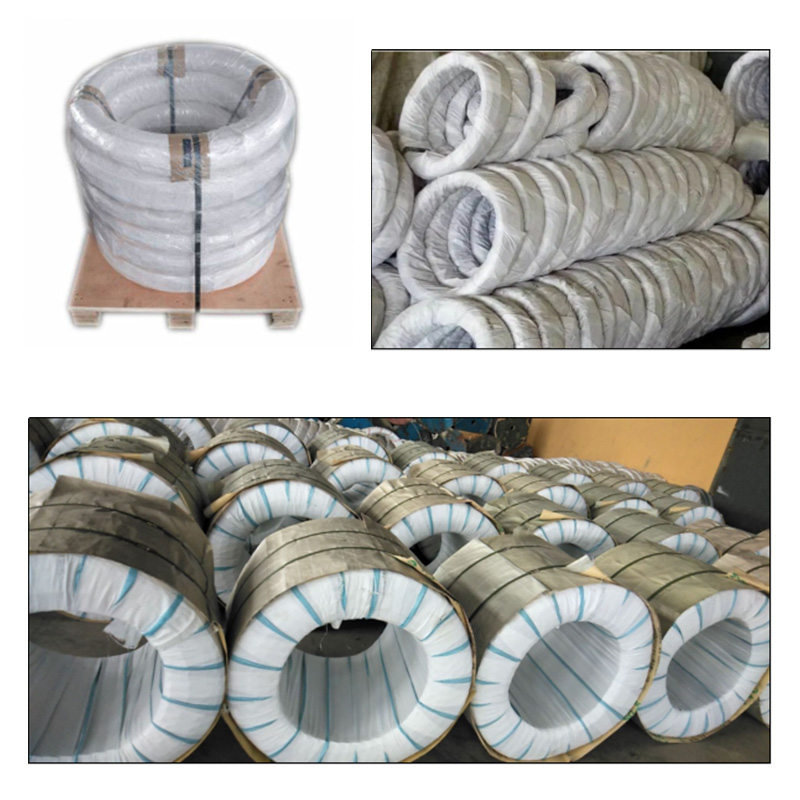

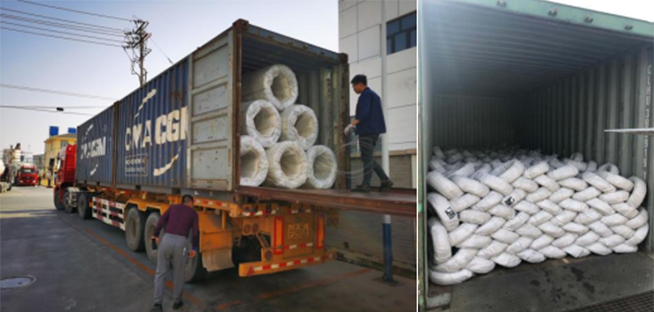

Packing and Transportation
the standard sea packaging of stainless steel wire
Standard export shipping package:
Woven bag + packing belt;
Customize the packaging according to your requirements (accept printing logo or other content on the packaging);
Other special packaging will be designed according to customer requirements;
By International Express: DHL/UPS/FEDEX/EMS and our own express line;
By air or By sea;
Shipping port: Tianjin or as your request.
Our Company
FAQ
Q:Can I go to your company to visit?
A:Of course, we welcome customers from all over the world to visit our company.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we
accept the third party inspection absolutely.
Q:How about the delivery time?
A:Within 15-45 days after we confirm you requirement.
Q:What is your terms of payment ?
A:T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
Q:How do we trust your company?
A:We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.
