| Quantity: | |
|---|---|
Baosteel
Product Name | ASTM Q235 GR.B Seamless Steel Pipe |
Material | 10#, 20#, 45#, 16Mn, A53(A,B), Q235, Q345, Q195, Q215, St37, St42, St37-2, St35.4, St52.4, ST35 |
Wall Thickness | 4.5MM~60MM |
Outer Diameter | 21.3MM~762MM |
Length | Length:Single random length/Double random length |
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques | |
Standard | API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS |
6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711 | |
Grade | 10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52 |
Grade A, Grade B, Grade C | |
Section Shape | Square, Rectangular, Round, |
Technique | Seamless Steel Pipe |
Packing | Bundle, or with all kinds of colors PVC or as your requirements |
Pipe Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |
MOQ | 1 Tons, more quantity price will be lower |
Surface Treatment | 1. Galvanized |
2. PVC,Black and color painting | |
3. Transparent oil,anti-rust oil | |
4. According to clients requirement | |
Product Application | 1. Fence, greenhouse, door pipe,greenhouse |
2. Low pressure liquid, water, gas, oil, line pipe | |
3. For both indoor and outdoor the building construction | |
4. Widely used in scaffolding construction which is much cheaper and convenient | |
Origin | Tianjin China |
Certificates | ISO9001-2008,SGS.BV,TUV |
Delivery Time | Usually within 10-45 days after receipt of advance payment |
Main Application:
1. Fluid / Gas delivery, Steel structure, Construction;
2. ERW/Welded round carbon steel pipes, which with Highest quality and strong supply ability are widely used in Steel structure and Construction.
Main Application:
1. Fluid / Gas delivery, Steel structure, Construction;
2. ERW/Welded round carbon steel pipes, which with Highest quality and strong supply ability are widely used in Steel structure and Construction.
Size Chart:
DN | OD Outside Diameter | ASTM Q235 GR.B Seamless Steel Pipe | BS1387 EN10255 | ||||
SCH10S | STD SCH40 | LIGHT | MEDIUM | HEAVY | |||
MM | INCH | MM | (mm) | (mm) | (mm) | (mm) | (mm) |
15 | 1/2” | 21.3 | 2.11 | 2.77 | 2 | 2.6 | - |
20 | 3/4” | 26.7 | 2.11 | 2.87 | 2.3 | 2.6 | 3.2 |
25 | 1” | 33.4 | 2.77 | 3.38 | 2.6 | 3.2 | 4 |
32 | 1-1/4” | 42.2 | 2.77 | 3.56 | 2.6 | 3.2 | 4 |
40 | 1-1/2” | 48.3 | 2.77 | 3.68 | 2.9 | 3.2 | 4 |
50 | 2” | 60.3 | 2.77 | 3.91 | 2.9 | 3.6 | 4.5 |
65 | 2-1/2” | 73 | 3.05 | 5.16 | 3.2 | 3.6 | 4.5 |
80 | 3” | 88.9 | 3.05 | 5.49 | 3.2 | 4 | 5 |
100 | 4” | 114.3 | 3.05 | 6.02 | 3.6 | 4.5 | 5.4 |
125 | 5” | 141.3 | 3.4 | 6.55 | - | 5 | 5.4 |
150 | 6” | 168.3 | 3.4 | 7.11 | - | 5 | 5.4 |
200 | 8” | 219.1 | 3.76 | 8.18 | - | - | - |
Process of production
First of all, raw material uncoiling: The billet used for it is generally steel plate or It is made of strip steel, then the coil is flattened, the flat end is cut and welded-looper-forming-welding-inner and outer weld bead removal-pre-correction-induction heat treatment-sizing and straightening-eddy current testing-cutting- Water pressure inspection—pickling—final quality inspection and size test, packaging—and then out of the warehouse.
Product Inspection
Packing and Transportation
Packaging is generally naked, steel wire binding, very strong.
If you have special requirements, you can use rust proof packaging, and more beautiful.

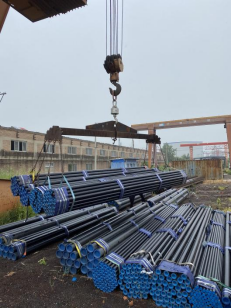

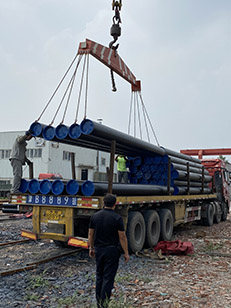

Transportation: Express (Sample Delivery), Air, Rail, Land, Sea shipping (FCL or LCL or Bulk)
Our Company
FAQ
Q:Can I go to your company to visit?
A:Of course, we welcome customers from all over the world to visit our company.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we
accept the third party inspection absolutely.
Q:How about the delivery time?
A:Within 15-45 days after we confirm you requirement.
Q:What is your terms of payment ?
A:T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
Q:How do we trust your company?
A:We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.
