| Quantity: | |
|---|---|

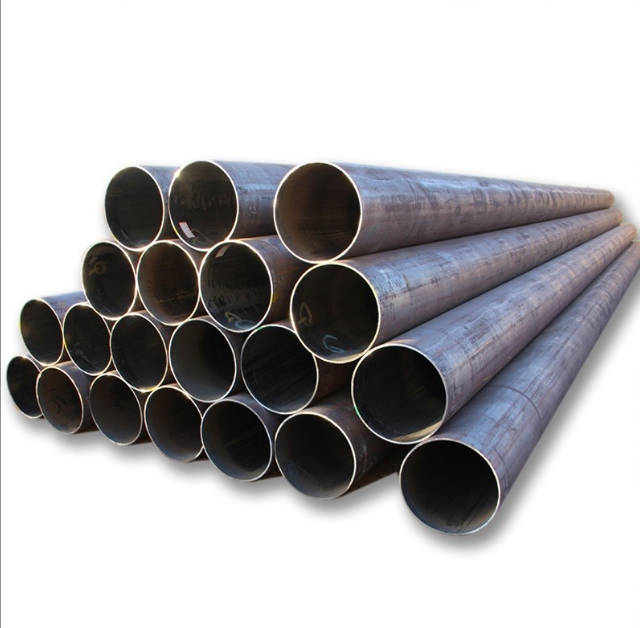

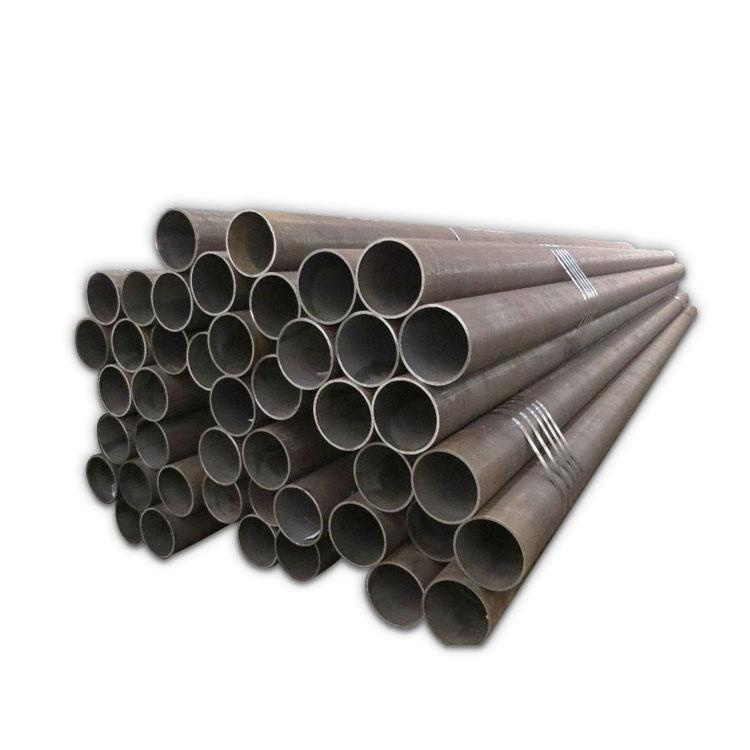

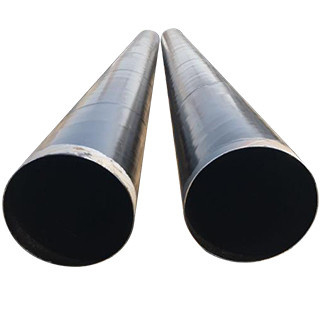

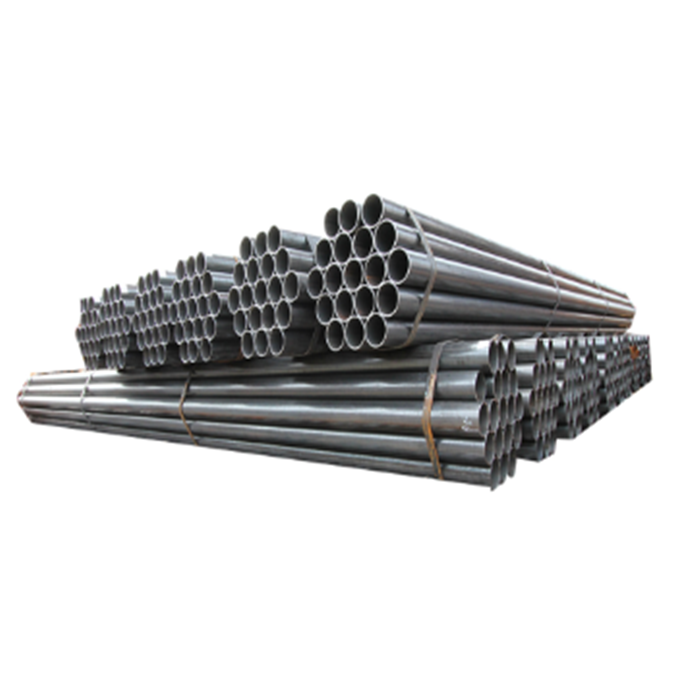

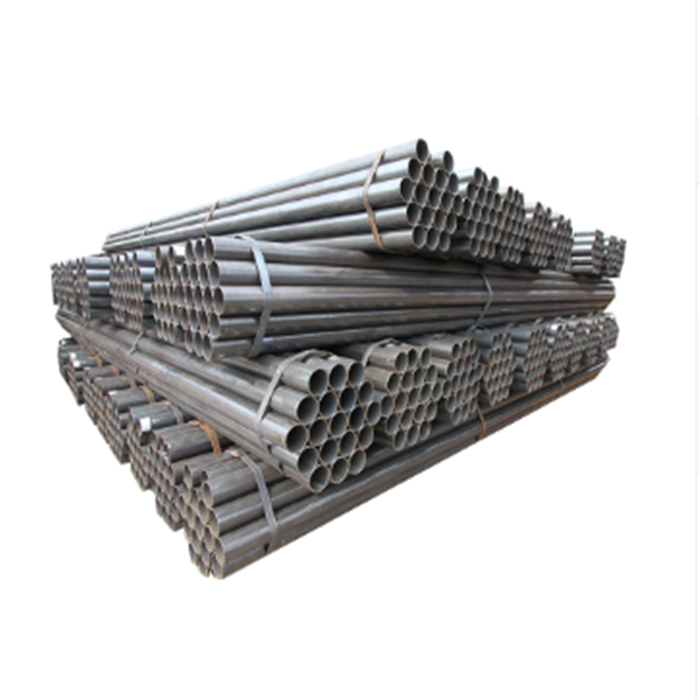

Product Name | ASTM A53 GR.B Welded Carbon Round Steel Pipe |
Material | 10#, 20#, 45#, 16Mn, A53(A,B), Q235, Q345, Q195, Q215, St37, St42, St37-2, St35.4, St52.4, ST35 |
Wall Thickness | 4.5MM~60MM |
Outer Diameter | 21.3MM~762MM |
Length | Length:Single random length/Double random length |
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques | |
Standard | API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS |
6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711 | |
Grade | 10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52 |
Process of production First of all, raw material uncoiling: The billet used for it is generally steel plate or It is made of strip steel, then the coil is flattened, the flat end is cut and welded-looper-forming-welding-inner and outer weld bead removal-pre-correction-induction heat treatment-sizing and straightening-eddy current testing-cutting- Water pressure inspection—pickling—final quality inspection and size test, packaging—and then out of the warehouse. Grade A, Grade B, Grade C | |
Section Shape | Square, Rectangular, Round, |
Technique | Seamless Steel Pipe |

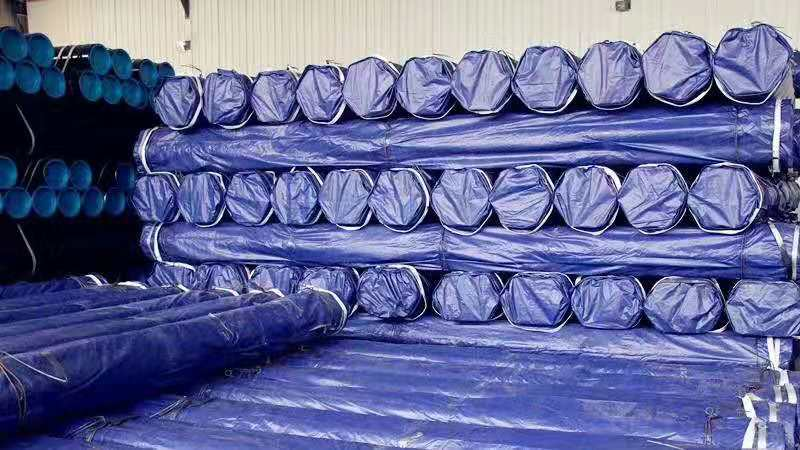

Packing | Bundle, or with all kinds of colors PVC or as your requirements |
Pipe Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |
MOQ | 1 Tons, more quantity price will be lower |
Surface Treatment | 1. Galvanized |
2. PVC,Black and color painting | |
3. Transparent oil,anti-rust oil | |
4. According to clients requirement | |
Product Application | 1. Fence, greenhouse, door pipe,greenhouse |
2. Low pressure liquid, water, gas, oil, line pipe | |
3. For both indoor and outdoor the building construction | |
4. Widely used in scaffolding construction which is much cheaper and convenient | |
Origin | Tianjin China |
Certificates | ISO9001-2008,SGS.BV,TUV |
Delivery Time | Usually within 10-45 days after receipt of advance payment |
Main Application:
1. Fluid / Gas delivery, Steel structure, Construction;
2. baosteelholdings GROUP ERW/Welded round carbon steel pipes, which with Highest quality and strong supply ability are widely used in Steel structure and Construction.
Note:
1. Free sampling, 100% after-sales quality assurance, Support any payment method;
2. All other specifications of round carbon steel pipes are available according to your requirement (OEM&ODM)! Factory price you will get from baosteelholdings GROUP.
Size Chart:
DN | OD Outside Diameter | ASTM A53 GRA / B | BS1387 EN10255 | ||||
SCH10S | STD SCH40 | LIGHT | MEDIUM | HEAVY | |||
MM | INCH | MM | (mm) | (mm) | (mm) | (mm) | (mm) |
15 | 1/2” | 21.3 | 2.11 | 2.77 | 2 | 2.6 | - |
20 | 3/4” | 26.7 | 2.11 | 2.87 | 2.3 | 2.6 | 3.2 |
25 | 1” | 33.4 | 2.77 | 3.38 | 2.6 | 3.2 | 4 |
32 | 1-1/4” | 42.2 | 2.77 | 3.56 | 2.6 | 3.2 | 4 |
40 | 1-1/2” | 48.3 | 2.77 | 3.68 | 2.9 | 3.2 | 4 |
50 | 2” | 60.3 | 2.77 | 3.91 | 2.9 | 3.6 | 4.5 |
65 | 2-1/2” | 73 | 3.05 | 5.16 | 3.2 | 3.6 | 4.5 |
80 | 3” | 88.9 | 3.05 | 5.49 | 3.2 | 4 | 5 |
100 | 4” | 114.3 | 3.05 | 6.02 | 3.6 | 4.5 | 5.4 |
125 | 5” | 141.3 | 3.4 | 6.55 | - | 5 | 5.4 |
150 | 6” | 168.3 | 3.4 | 7.11 | - | 5 | 5.4 |
200 | 8” | 219.1 | 3.76 | 8.18 | - | - | - |
Process of production
First of all, raw material uncoiling: The billet used for it is generally steel plate or It is made of strip steel, then the coil is flattened, the flat end is cut and welded-looper-forming-welding-inner and outer weld bead removal-pre-correction-induction heat treatment-sizing and straightening-eddy current testing-cutting- Water pressure inspection—pickling—final quality inspection and size test, packaging—and then out of the warehouse.
product Inspection
Transportation: Express (Sample Delivery), Air, Rail, Land, Sea shipping (FCL or LCL or Bulk)
Our Company
FAQ
Q:Can I go to your company to visit?
A:Of course, we welcome customers from all over the world to visit our company.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we
accept the third party inspection absolutely.
Q:How about the delivery time?
A:Within 15-45 days after we confirm you requirement.
Q:What is your terms of payment ?
A:T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
Q:How do we trust your company?
A:We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.
